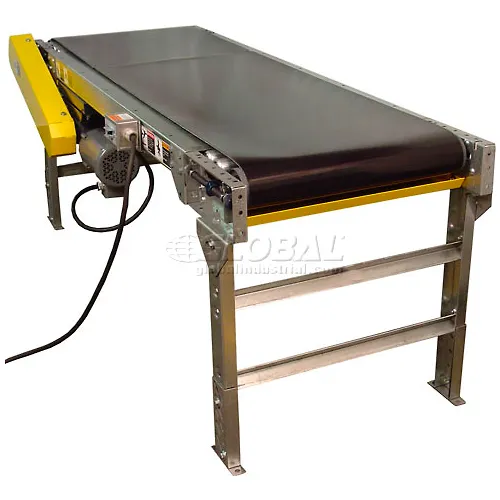

<B>Omni Metalcraft POWER BELT CONVEYOR WITH 6" HIGH SIDE RAILS</B><BR><BR>

<B>Shipped complete, including controls.</B><BR><BR>

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. Includes 6"H Side Rails to help prevent cargo from falling during movement. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.<BR><BR>

<B>Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.</B><BR><BR>

<B>Optional Horsepower upgrade is available to increase Capacity (see chart below). </B><BR><BR><center>
<table border="0" cellspacing="0" cellpadding="2" class="datatable">
    <tr>
      <td class="datatablealt" colspan="3" align="center"><B>Load Capacity Lbs. Uniformly Distributed Over Length</B></td>
    </tr>
	<tr>
	  <td class="hdrtitle" nowrap align="middle">&nbsp; Horsepower &nbsp;</td>
      <td class="hdrtitle" nowrap align="middle">&nbsp; 12"W Belt &nbsp;</td>
      <td class="hdrtitle" nowrap align="middle">&nbsp; 20" - 24"W Belt &nbsp;</td>
    </tr>
    <tr>
      <td class="datatablerow">&nbsp; 1/2 (Standard)</td>
      <td class="datatablerow" align="middle">250</td>
      <td class="datatablerow" align="middle">160</td>
    </tr>
    <tr>
      <td class="datatablealt">&nbsp; 3/4 (Optional)</td>
      <td class="datatablealt" align="middle">500</td>
      <td class="datatablealt" align="middle">390</td>
    </tr>
    <tr>
      <td class="datatablerow">&nbsp; 1 (Optional)</td>
      <td class="datatablerow" align="middle">740</td>
      <td class="datatablerow" align="middle">640</td>
    </tr>
    <tr>
      <td class="datatablealt">&nbsp; 1-1/2 (Optional)</td>
      <td class="datatablealt" align="middle">1230</td>
      <td class="datatablealt" align="middle">1090</td>
    </tr>
    <tr>
      <td class="datatablerow">&nbsp; 2 (Optional)</td>
      <td class="datatablerow" align="middle">1680</td>
      <td class="datatablerow" align="middle">1580</td>
    </tr>
  </table>
</center><BR><BR><BR><BR><B>Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs. </B><BR><BR>

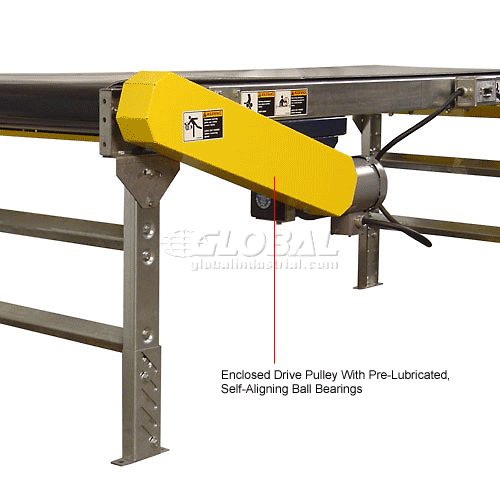

Powered Belt Conveyor - Enclosed 1/2 HP Motor

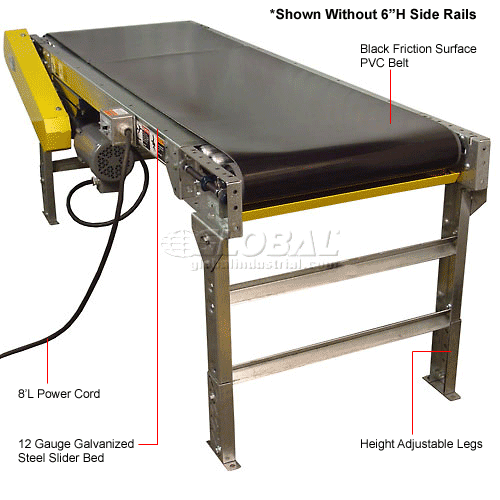

Powered Belt Conveyor - 12 Guage Galvanized Steel Slider Bed

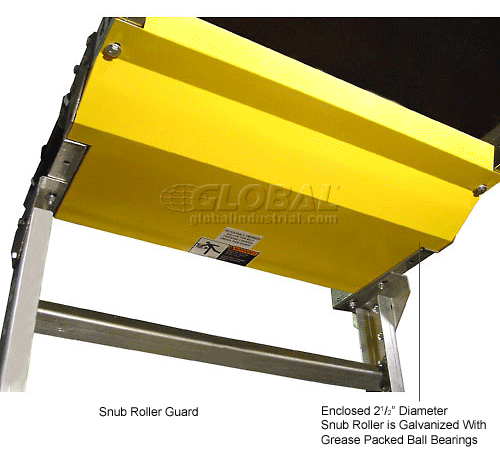

Powered Belt Conveyor - Snub Roller Guard

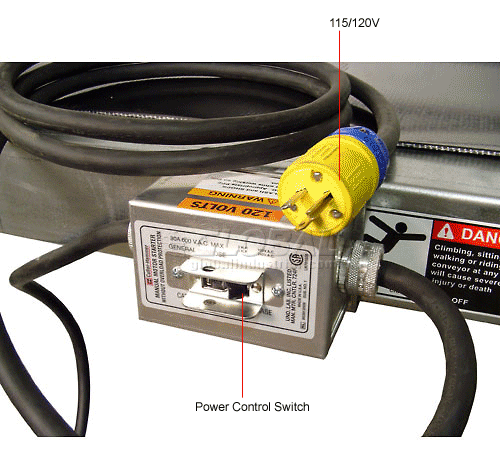

Powered Belt Conveyor - Powered Control Switch

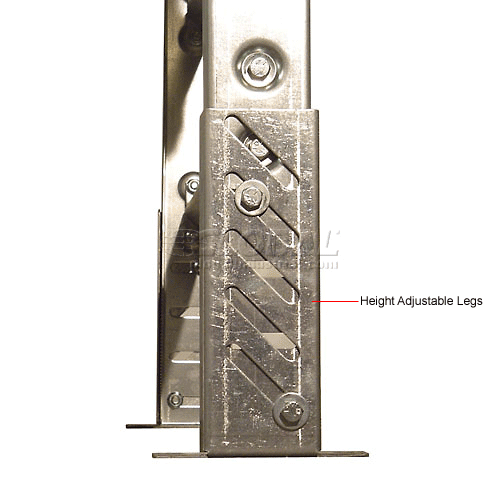

Powered Belt Conveyor - Height Adjustable Legs

powered-20-w-x-40-l-belt-conveyor-with-6-h-side-rails

<li><p class='canada-shop'>You are shopping on <span>globalIndustrial.ca</span></p><p class='canada-prices'>All prices in $ CA.</p></li>

Clearance Items

Customer Also Viewed

<div class='exclusiveOffersContainer' style='text-align:center;line-height:1.2;font-size:14px;letter-spacing:0.5px;color:white;position:sticky;top:0;z-index:2;'><div class='marketingBannerRect' style='background-color: #d41e3d;'><span><span><div class='exclusiveOffersOn'><span id='exclOffrId' style='color:#fff;font-weight:500;'><p class='current-offer-anchor' style='color:#fff;font-weight:500;'>DUE TO HURRICANE IAN AND SEVERE WEATHER CONDITIONS, PICKUP AND DELIVERY OF ORDERS IN FLORIDA COULD BE DELAYED.</p></span></div></span></span></div></div>

<li class='language-change-site'><a href='https://www.globalindustrial.com'>Change</a>&nbsp;to globalindustrial.com</li>

with 5% off when you use your Global Industrial Credit Card.

 suggested payments with 6 month special financing OR

<p><a href="/knowledge-center">Knowledge Center</a></p>

<p><a href="/contactUs">Customer Support</a></p>

<p><a href="/account/browse-history">Browse History</a></p>

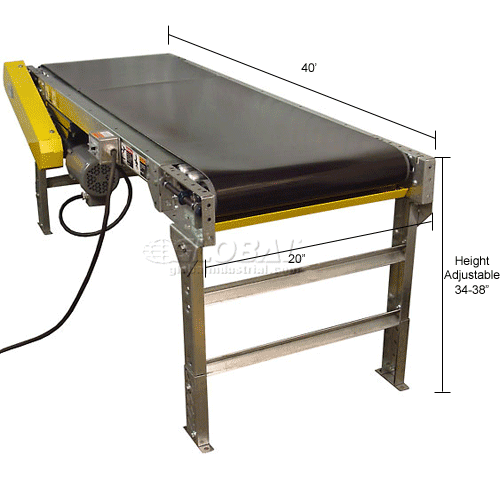

Omni Metalcraft 20"W Powered Belt Conveyor w/ Side Rails, 40'L, 60 FPM, 115/230V
