Way back in 1762, engineer John Smeaton designed the first water wheel-driven blowing cylinder, replacing the traditional bellows. By 1776, John Wilkinson's blasting machine became the standard industrial air compressor, setting the stage for future designs. And in 1888, Austrian engineer Viktor Popp built the first compressed-air powered network in Paris, and thus, modern pneumatics was born.



However, traditional systems have saddled the industry with a mountain of energy costs, truly deafening noise, and considerable maintenance demands and expenses. Evolution has become essential, and today, a new generation of smarter, leaner compressors is revolutionizing pneumatics and tackling longstanding problems head-on.



The Current State of Pneumatics: Understanding the Challenge.



Just how central are compressed air systems to US industry, and how vast is the unexploited potential for energy savings? Well, according to statistics from the US Department of Energy, compressed air systems represent an astonishing 10% of the electric load of industry in the US. 70% of facilities in manufacturing depend upon their compressed air systems day in and day out. But perhaps even most telling are the claims that more than 50% of these systems have ‘huge opportunities for energy savings that are not being exploited.’

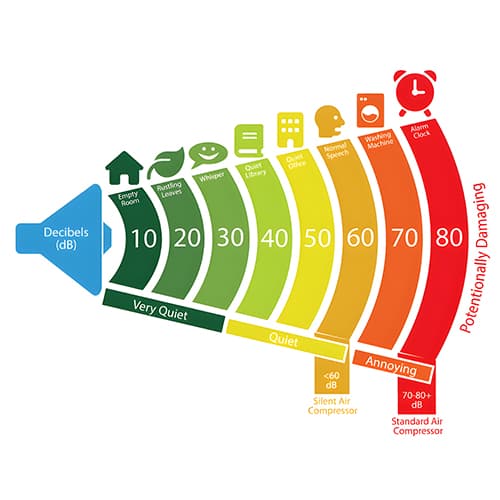

This problem goes well beyond energy consumption, with traditional reciprocating air compressors still being a workplace hazard. In addition to sucking-up huge amounts of energy, compressed air systems are a major source of noise pollution in the workplace. The default analysis put forth by the American Training Resources website states that compressed air systems typically operate at 110-140 dB; that’s over three times the maximum of 90 decibels recommended by the Occupational Safety and Health Administration (OSHA). What’s more, this doesn’t even account for noises generated by an individual operator, and those tools that are powered by circulating and releasing compressed air. A typical 7.5HP reciprocating compressor will produce 85 decibels during its general operation and may reach around 90 decibels during more aggressive usage.



The American National Institute for Occupational Safety and Health (NIOSH) has documented the effects of this prolonged abuse, and the results are quite telling. It estimates that 22 million workers each year are exposed to potentially damaging noise. Plus, the Bureau of Labor Statistics backs up this anxiety about hearing loss by reporting that, in manufacturing, it’s the most common occupational illness, captured in one in nine recordable workplace illnesses. We can and MUST do better.



Variable Speed Compressors Are A Paradigm Shift in Pneumatic Technology.







Water-Cooling: Precision Temperature Management.



In order to work, the electrical energy must be transferred into the paddlewheels. This takes heat. While automotive engineers solved this heating problem over a century ago, water-cooled air compressors mark the first time this powerful approach to thermal management has been applied to rotary compressors. Keeping an ordinary compressor’s temperature stable is no small task. With air-cooling, just like your car, keeping temperatures steady can be next to impossible in anything but the gentlest of operating conditions.



The advantages make for more than just a nice, steady chill, although even that translates into savings. Systems that stay cool, but not too cool, operate more efficiently; by avoiding drastic temperature swings, they use less energy. And many of the parts inside a water-cooled system never get hot enough to suffer thermal stress that can cause component failure; as a result, the compressor that drives the system (right now the largest single source of power consumption in a home) is less likely to develop problems and can run longer on less maintenance.



Secondly, because of their ability to handle the heat more effectively, these water-cooling chillers can operate successfully in places where ambient temperatures are high, or where space constraints limit the movement of air near other equipment.



Revolutionizing Efficiency With a Variable Speed Drive.



Truly, the most significant development in modern compressor design is the use of Variable Speed Drive (VSD) technology, which, in essence, replaces the old ‘on/off’ state with a range of intermediate states. This greatly improves efficiency, since compressor power or output can now be modulated to closely respond to the actual demand.



This smart design has delivered significant gains in energy efficiency, with VSD compressors cutting energy usage by up to 30% compared to fixed-speed ones. Yet it’s the potential for greater environmental benefits that really excites technologists. Balancing output to demand reduces mechanical stresses on the system, meaning that components last longer while maintenance needs also drop.



The high resolution of VSD technology also allows the delivery of steady air pressure across a whole system, giving far greater stability than pneumatic systems with controls based simply on on/off cycling. This is ideal for any operation where a pneumatic control is essential, such as precision manufacturing, as varying air pressure can destroy products or waste valuable inputs.



A New Generation of Compressors Provides a Higher Level of Safety and Improves Efficiency.

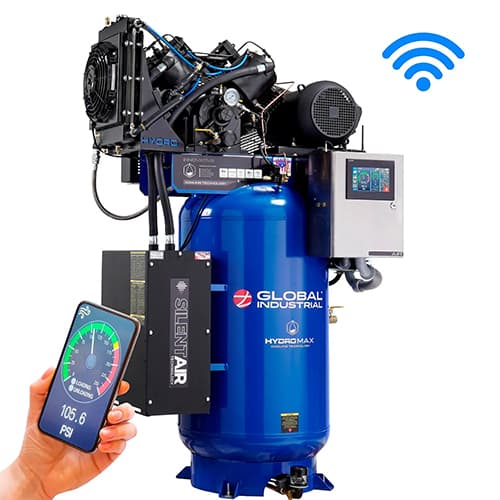

Wi-Fi Enabled Air Compressors Enable Smart Integration.



Programming a high-speed compressor to perform the way a human technician would means staff can focus on other aspects of the business while maximizing uptime. As a result, Wi-Fi connectivity added to conventional compressor systems is a game-changer, transforming air compressors into intelligent, internet-connected systems capable of being monitored, maintained, reported on, and controlled remotely. Managing air compressors remotely allows facility managers to log in from any web-enabled device to access real-time performance data, receive predictive maintenance warnings, and make operational adjustments, wherever they are in the world.



This connectivity allows for a kind of anticipatory maintenance and management: rather than waiting for problems to develop, a manager can track system parameters in real-time, going back to study trends over the past year or more, to figure out why things are failing, and to see how system performance can be optimized. Patterns show up: usage, pressure, energy consumption, water flow rates, particle size or heat transfer.



Advanced Filtration: The Foundation of Reliability.



Modern compressor design makes single-stage filter systems history, with the development of complete air filtration systems that use noise reduction technology from the compressor connected to a smart five-stage filtration process, which delivers 250% more air filtration in any application giving improved air quality whilst providing reduced maintenance.



In turn, this results in a healthier system throughout, as the well-filtered air will boost the longevity and efficiency of tools and stations that use pneumatics, and cut down on the number of filter replacements, as well as the likelihood of system breakdowns due to contamination.



The Economics of Innovation: A Comprehensive Analysis.



Although the upfront cost of modern compressor systems may be two or even three times greater than traditional air compressors, a total cost of ownership analysis shows a good return on investment with a relatively short payback period. When factoring in energy savings, maintenance cost reductions and improved performance, the payback is typically achieved in less than two years.



It’s not just about the labor savings either, although they’re huge. Think energy savings alone: an average 7.5HP reciprocating compressor needs about 215 amps to start, and 50-70 amps to run, whereas new SMART AIR consumes 15 amps or less. That means savings of $200-$300 per month per unit. Couple that with lower maintenance costs, improved reliability, and longer useful life, and the economic benefits really start to add up.



There are other advantages too, besides the direct cost savings. Better air quality and less noise make the workplace more pleasant, meaning that employees are more concentrated and less liable to leave the company. The ability to monitor system functionality in real-time, and store vast amounts of data on it, helps a system run more smoothly; unexpected downtime is minimized and energy and other resources are used more efficiently.



Federal Initiatives and Industry Response.



The federal Department of Energy’s ‘Compressed Air Challenge’ is one government initiative that demonstrates its recognition for the need for more efficient compressors. Yet despite five years of steady demand growth, the adoption of high-efficiency systems has grown relatively slowly, with less than 2% of facilities upgrading over the past two decades. Analysts commonly point to low awareness of modern options, initial cost concerns, and perceived maintenance requirements as the primary barriers slowing adoption.



The latest generation of compressors has been designed directly to address these issues, through faster paybacks with lower initial investments and easier maintenance commitments that lead to greater efficiency. With increasing energy prices and more demanding environmental regulations, the rationale for upgrades looks more compelling than ever.



Looking to the Future With An Integrated Approach.



The modern vision of pneumatics entails systems employing multiple efficiency and safety technologies as an integrated whole. Take the case of modern compressors, which increase service life to more than 50,000 hours, reduce energy demands by up to 36%, and thanks to intelligent monitoring systems, can relay real-time information to remote customers. Integrated design principles also ensure that improvements in one area enhance the benefits of others and, later on, they can be further pushed even further.



The evolution of air compressor technology isn’t just an issue of improving technical know-how; it’s a strategic opportunity for organizations of all kinds to optimize performance, reduce costs, and make their facilities safer to work in. While it may feel cheaper to buy traditional systems, the total cost of ownership makes more modern ones the clear choice for businesses who want to ensure that they are operating not only with a modern, competitive edge but in the most sustainable way possible.



What’s more, the escalating costs of energy and the stringent safety requirements of the workplace mean that specifying up-to-date equipment is no longer just an upgrade, but a strategic requirement. Using water- and oil-cooling, along with variable speed drives, noise-reduction technology, and monitoring systems provide a complete package for the problems that have haunted the industry’s compressed air installations for many years.



But for every business still holding out, the new generation of air compressors demonstrates an unparalleled path toward cutting energy and maintenance expenditures, reducing the risk of plant outages, and increasing worker safety. Ultimately, they position the business for success in an increasingly competitive industrial environment.



This fairly robust guide to modern pneumatic solutions is still just touching the surface of the many advantages of the next generation of air compressors. If you’d like to know more, please contact our experts here at Global Industrial. We’ll steer you in the right direction and ensure you’re set up for years of success.



References

• U.S. Department of Energy, "Improving Compressed Air System Performance" (2023)
• Lawrence Berkeley National Laboratory, "Energy Efficiency in U.S. Manufacturing" (2023)
• National Institute for Occupational Safety and Health, "Occupational Noise Exposure" (2022)
• Journal of Cleaner Production, "Impact of Maintenance on Compressor Efficiency" (2022)
• International Journal of Refrigeration, "Comparative Study of Water-Cooled and Air-Cooled Compressors" (2023)
• Compressed Air and Gas Institute, "Variable Speed Compressors: Energy Savings and Performance" (2023)
• U.S. Department of Energy, "Motor Systems Efficiency Supply Curves" (2022)
• Journal of Occupational and Environmental Hygiene, "Impact of Noise Reduction on Worker Productivity" (2023)
• McKinsey & Company, "The Internet of Things: Mapping the Value Beyond the Hype" (2023 Update)
• U.S. Department of Energy, "Compressed Air Systems" (2023)
• Compressed Air Challenge, "Best Practices for Compressed Air Systems" (2022)
